Name: SEGMENTS AND RINGS - Toolgal USA
Price: 6.95 USD
Availability: InStock

Replacement segments and crown rings for diamond core bits

Replacement diamond segments for re-tipping segmented core bits 2-1/4″ to 12″, and sintered crown rings for small stone core bits. Priced per segment / per ring.

General bond

Hard bond

Stone rings

BIT SIZE:

2-1/4" bit

3" bit

4" bit

6" bit

8" bit

10" bit

12" bit

WIDTH:

Per order · per segment

price: $6.95 / 1 pc

Features & Applications
Technical Data

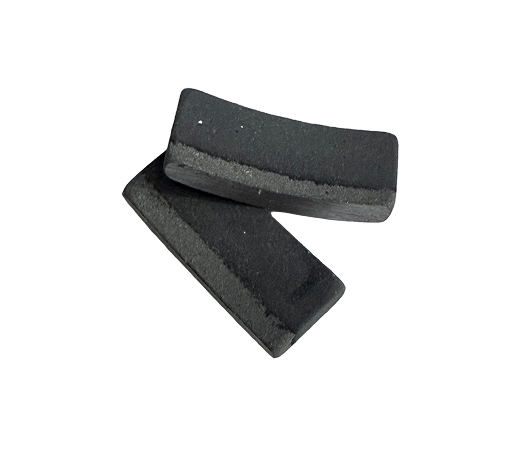

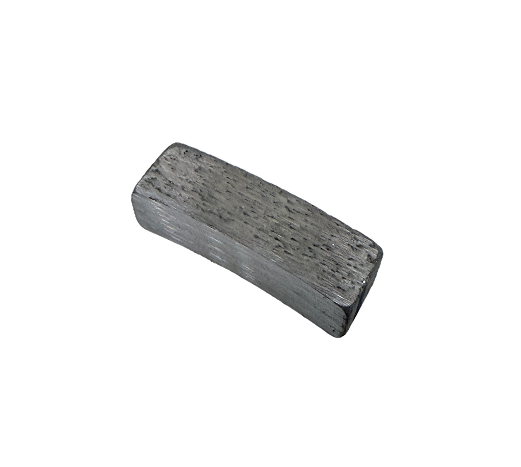

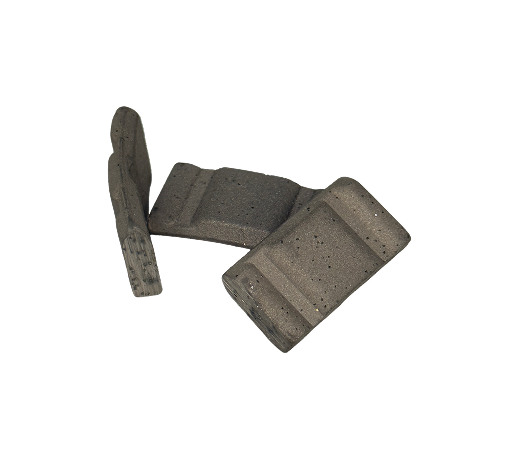

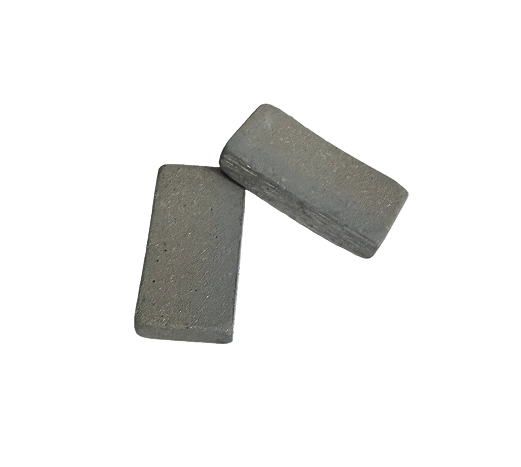

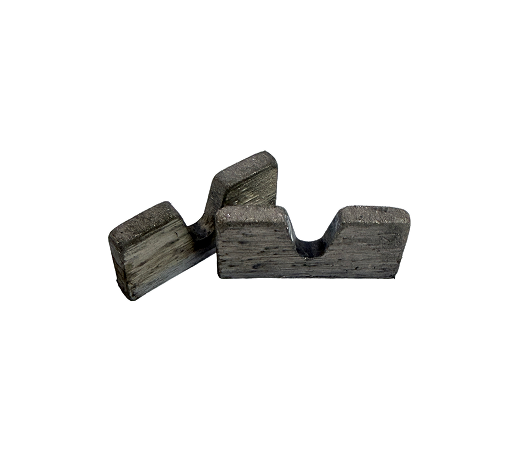

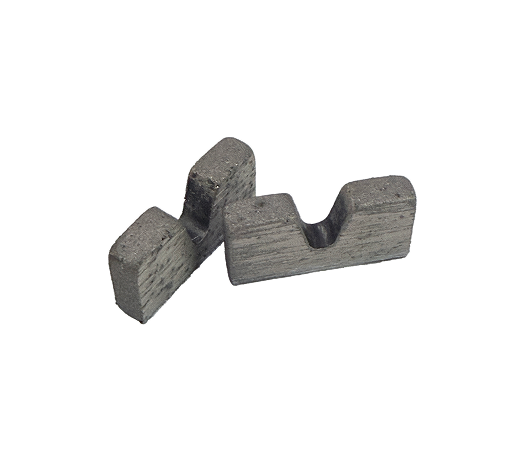

Replacement diamond segments (24 mm long) for re-tipping segmented core bits 2-1/4"–12".
Each segment is made for a specific bit diameter; width by size.
Two bonds: General (concrete) and Hard (hard or abrasive concrete).

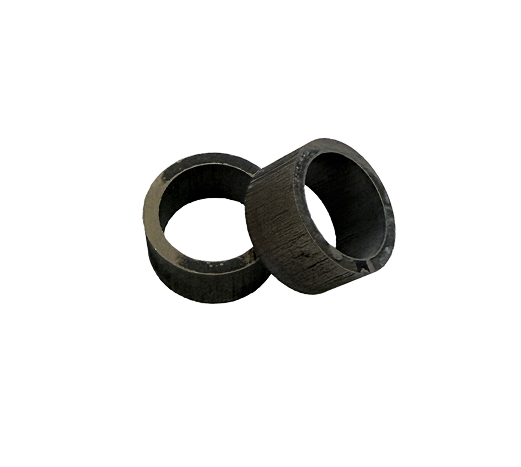

Sintered crown rings, 25 mm and 40 mm, for small-diameter stone (granite) core bits.
Prices are per segment / per ring. Other sizes, widths and bonds are made to order.
Made by Toolgal.

Type	Size	Width / wall	Unit	Part No.
General	2-1/4″ bit	Per order	per segment	Made to order
General	3″ bit	Per order	per segment	Made to order
General	4″ bit	.197″ (5.0 mm)	per segment	SD005280
General	6″ bit	.197″ (5.0 mm)	per segment	SD005273
General	8″ bit	Per order	per segment	Made to order
General	10″ bit	Per order	per segment	Made to order
General	12″ bit	Per order	per segment	Made to order
Hard	2-1/4″ bit	Per order	per segment	Made to order
Hard	3″ bit	Per order	per segment	Made to order
Hard	4″ bit	Per order	per segment	Made to order
Hard	6″ bit	Per order	per segment	Made to order
Hard	8″ bit	Per order	per segment	Made to order
Hard	10″ bit	.197″ (5.0 mm)	per segment	SD003285
Hard	12″ bit	.197″ (5.0 mm)	per segment	SD003350
Stone rings	25 mm (≈1″) ring	2.0 mm wall	per ring	MC000412
Stone rings	40 mm (≈1-9/16″) ring	2.5 mm wall	per ring	MC000486
