Name: WALL SAW - Toolgal USA
Price: 575.00 USD
Availability: InStock

Toolgal diamond wall saw blade with V-notch segments

Diamond wall saw blade for concrete and light reinforced concrete cutting

Wall saw blades for reinforced concrete

Diamond wall saw blades, 24″ to 72″, for cutting openings in concrete and reinforced concrete walls and slabs. 40 mm V-notch or 20 mm short segments, three kerfs and three arbor options.

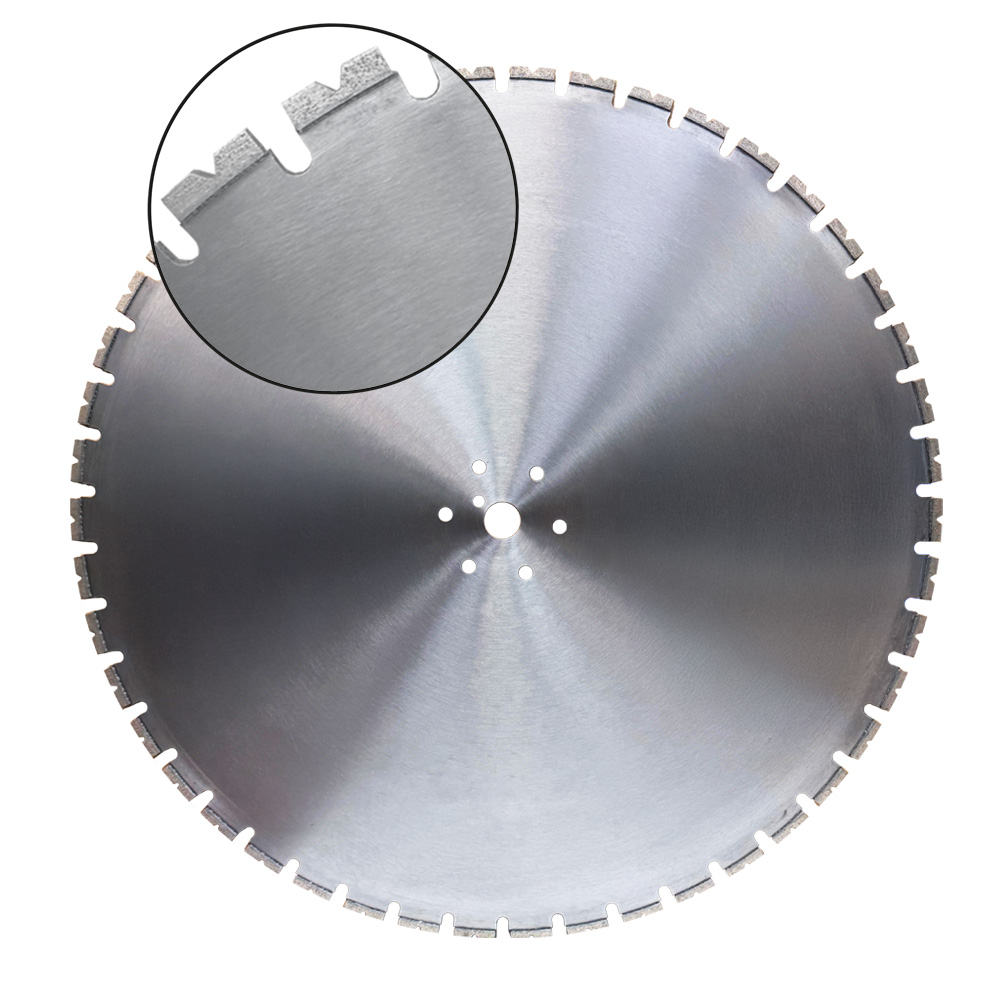

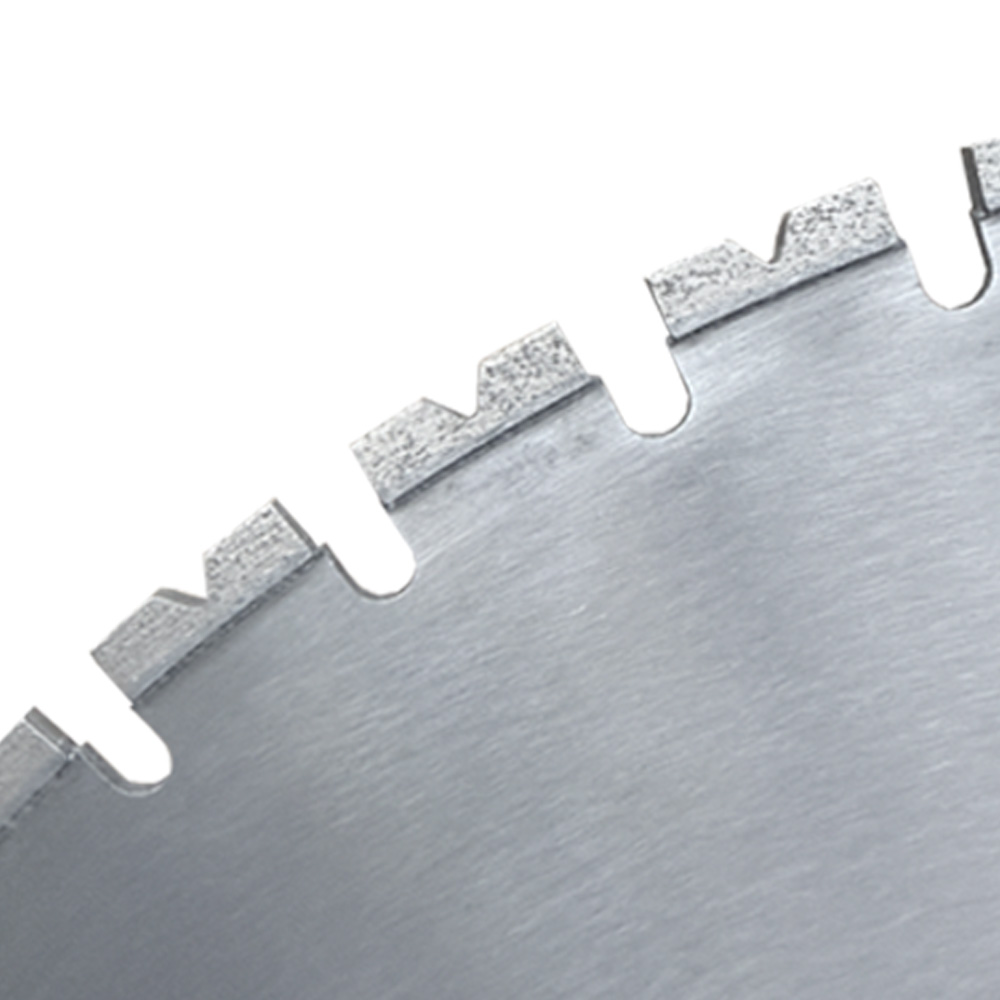

40 mm V-notch SEG

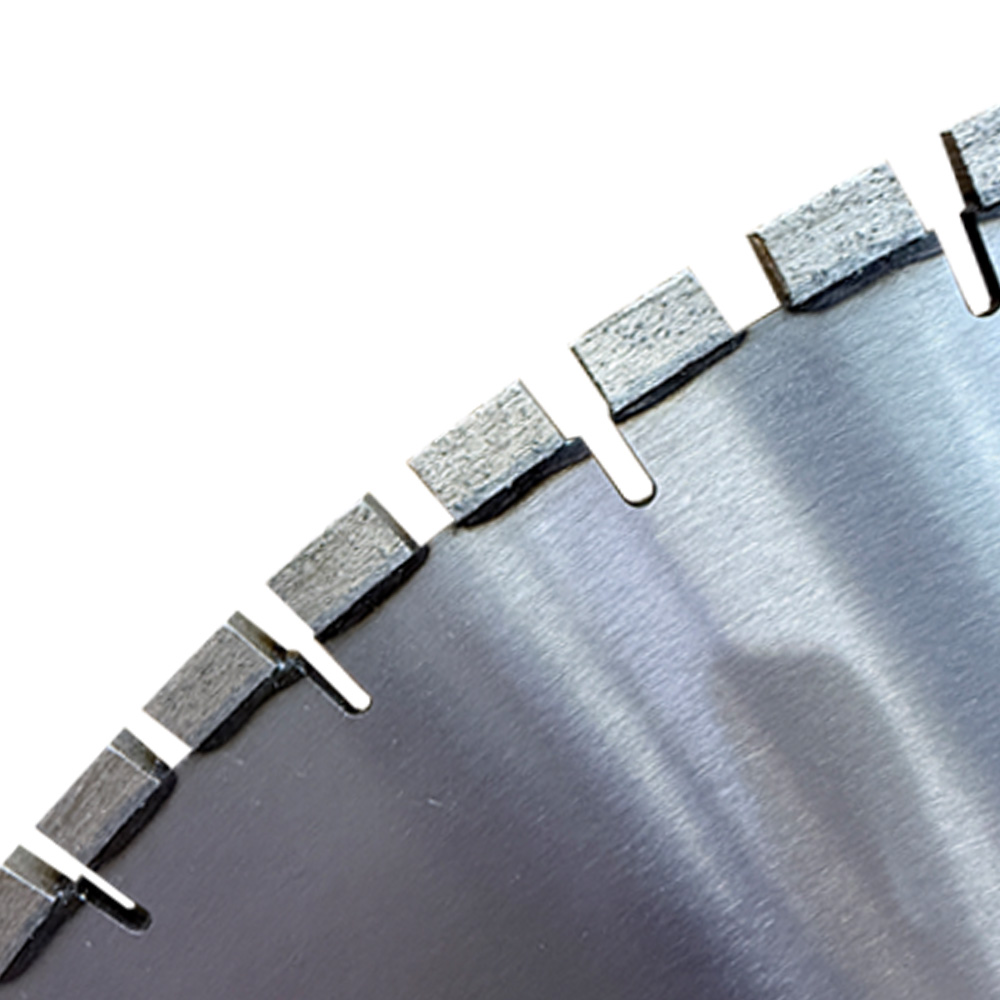

20 mm short SEG

DIAMETER:

24"

26"

28"

30"

32"

36"

42"

48"

54"

63"

72"

KERF:

.187"

.220"

.250"

ARBOR:

1"+6

1-3/8"+6

60 mm+6

price: $575 / 1 pc

Features & Applications
Technical Data

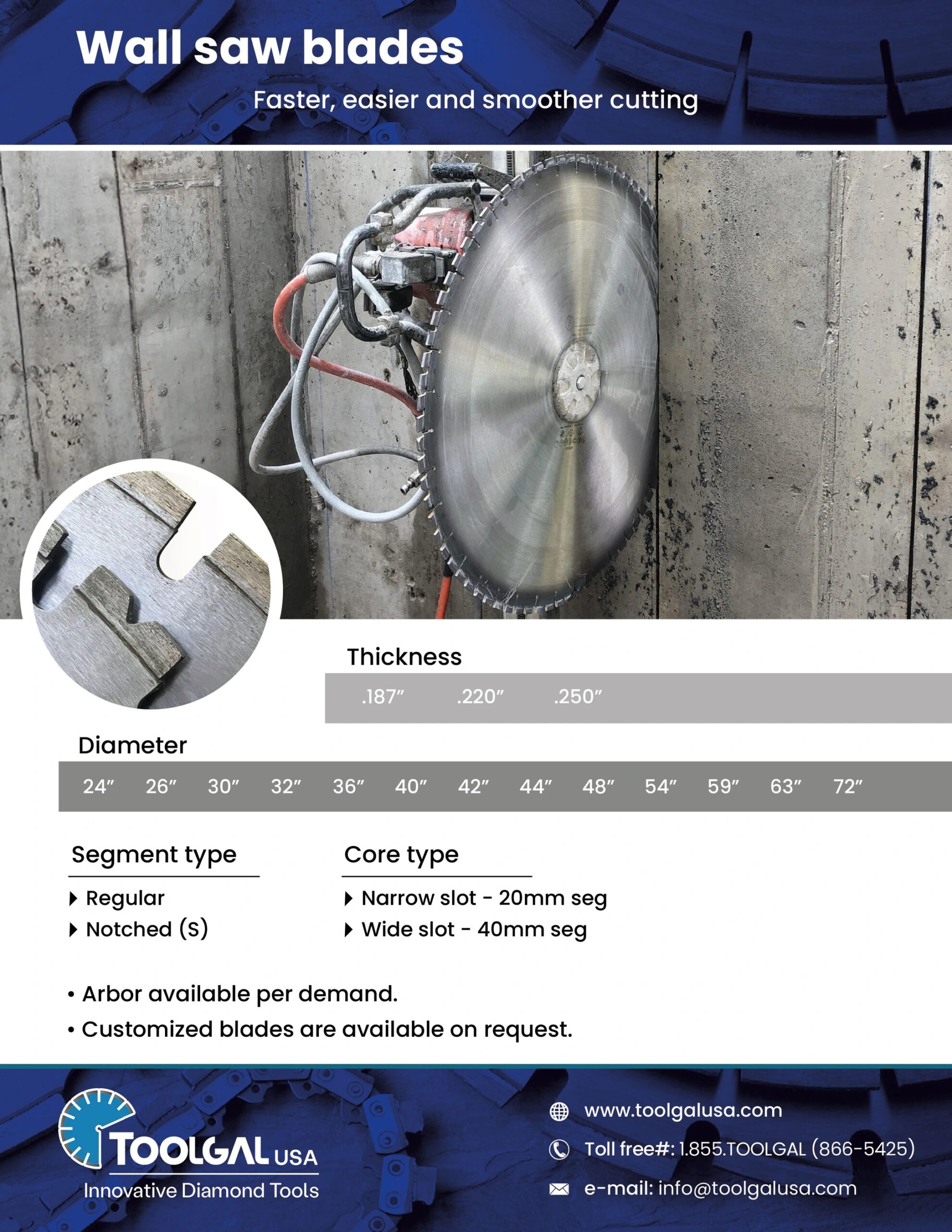

Product Brochure

Diamond wall saw blades for cutting openings in concrete and reinforced concrete walls and slabs.
Two segment lines: 40 mm V-notch segments (24"–72") or 20 mm short segments (24"–36").
Kerf options: .187", .220" and .250".
Standard 1"+6 pin-hole arbor; 1-3/8"+6 and 60 mm+6 arbors compatible with Hilti® and Pentruder® wall saws.
Custom diameters, kerfs and arbors are available on request.

Hilti® and Pentruder® are registered trademarks of their respective owners. TUSA is not affiliated with these companies; brand names are used only to indicate arbor compatibility.

OD	Kerf	Segment	Part No. 1″+6	Part No. 1-3/8″+6	Part No. 60 mm+6
24″	.187″	40 mm V-notch	Made to order	Made to order	Made to order
24″	.220″	40 mm V-notch	AS008588	Made to order	Made to order
24″	.250″	40 mm V-notch	AS012524	Made to order	Made to order
26″	.187″	40 mm V-notch	AS004907	Made to order	Made to order
26″	.220″	40 mm V-notch	Made to order	Made to order	Made to order
26″	.250″	40 mm V-notch	Made to order	Made to order	Made to order
28″	.187″	40 mm V-notch	AS004458	Made to order	Made to order
30″	.187″	40 mm V-notch	AS004908	Made to order	Made to order
30″	.220″	40 mm V-notch	AS008139	Made to order	Made to order
30″	.250″	40 mm V-notch	Made to order	Made to order	Made to order
32″	.187″	40 mm V-notch	AS004885	Made to order	AS013132
32″	.220″	40 mm V-notch	AS008587	Made to order	Made to order
32″	.250″	40 mm V-notch	Made to order	AS012773	AS012789
36″	.187″	40 mm V-notch	AS005003	Made to order	Made to order
36″	.220″	40 mm V-notch	Made to order	Made to order	Made to order
36″	.250″	40 mm V-notch	Made to order	Made to order	Made to order
42″	.187″	40 mm V-notch	AS006522	AS013226	AS012390
42″	.220″	40 mm V-notch	AS006842	AS013227	AS013228
42″	.250″	40 mm V-notch	AS011585	Made to order	Made to order
48″	.187″	40 mm V-notch	AS006524	AS013150	AS012392
48″	.220″	40 mm V-notch	AS011582	AS013172	AS013233
48″	.250″	40 mm V-notch	AS011586	AS013157	Made to order
54″	.187″	40 mm V-notch	AS006769	AS013229	AS012394
54″	.220″	40 mm V-notch	AS011583	Made to order	AS013230
54″	.250″	40 mm V-notch	AS011587	Made to order	Made to order
63″	.187″	40 mm V-notch	AS012904	AS013231	AS012396
63″	.220″	40 mm V-notch	AS011853	Made to order	Made to order
72″	.220″	40 mm V-notch	AS011428	Made to order	Made to order
24″	.187″	20 mm short	AS006779	AS013219	AS013100
24″	.220″	20 mm short	AS006536	AS013220	AS013102
24″	.250″	20 mm short	AS006537	Made to order	Made to order
26″	.187″	20 mm short	AS006749	Made to order	Made to order
26″	.220″	20 mm short	Made to order	Made to order	Made to order
30″	.187″	20 mm short	AS006538	Made to order	Made to order
30″	.220″	20 mm short	AS006539	AS013221	Made to order
30″	.250″	20 mm short	AS006540	AS013117	Made to order
32″	.187″	20 mm short	AS006462	AS013222	AS013101
32″	.220″	20 mm short	AS006543	AS012493	AS013105
32″	.250″	20 mm short	Made to order	AS013218	Made to order
36″	.187″	20 mm short	AS006542	AS013223	AS013234
36″	.220″	20 mm short	AS006544	AS013224	AS013225
36″	.250″	20 mm short	AS006545	Made to order	Made to order
